Clusters

The Service Lifecycle Management enables the installation of new clusters and the integration of existing clusters (managed clusters). To deploy a service offering into a cluster, the corresponding deployment capability must have the deployment type of the service offering defined in the property supportedDeploymentTypes(see section Deployment Capabilites for details).

Install new clusters

A corresponding cluster deployment capability must be available to allow the installation of a new cluster. That deployment capability must have an INSTALL action and a definition for clusterMemberTypes.

Example from the official K8S deployment capability:

{
    ...
    "actions": {
        ...
        "INSTALL": {
        "capabilityActionClass": "AwxCapabilityAction",
        "capabilityActionType": "INSTALL",
        "awxRepo": "https://github.com/eclipse-slm/slm-dc-k8s",
        "awxBranch": "main",
        "playbook": "install.yml",
        ...
    },
    ...
    "clusterMemberTypes": [
        {
            "name": "k8s_master",
            "prettyName": "Control-Plane Master",
            "minNumber": 3,
            "scalable": false
        },
        {
            "name": "k8s_node",
            "prettyName": "Worker",
            "minNumber": 1,
            "scalable": true
        },
        {
            "name": "haproxy",
            "prettyName": "External Proxy",
            "minNumber": 1,
            "scalable": false
        }
    ],
    ...
}

Install new Kubernetes clusters

The Service Lifecycle Management provides an official K8S deployment capability, which supports the installation of new clusters. At least 5 hosts are required to set up a new Kubernetes cluster.

Example:

• Go to the Resource tab and press the + button in the bottom right corner.

• Select ADD EXISTING.

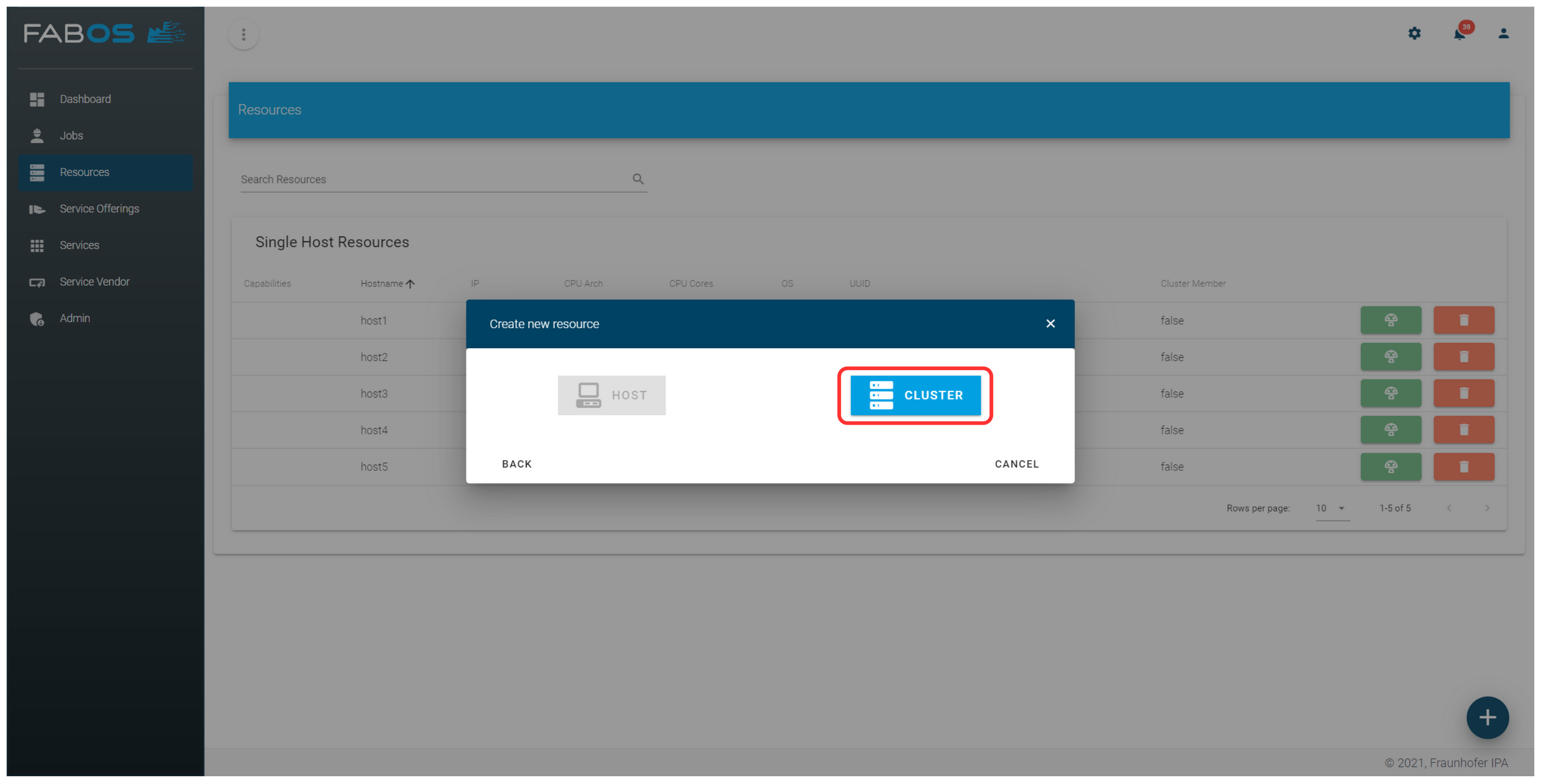

• Select Cluster.

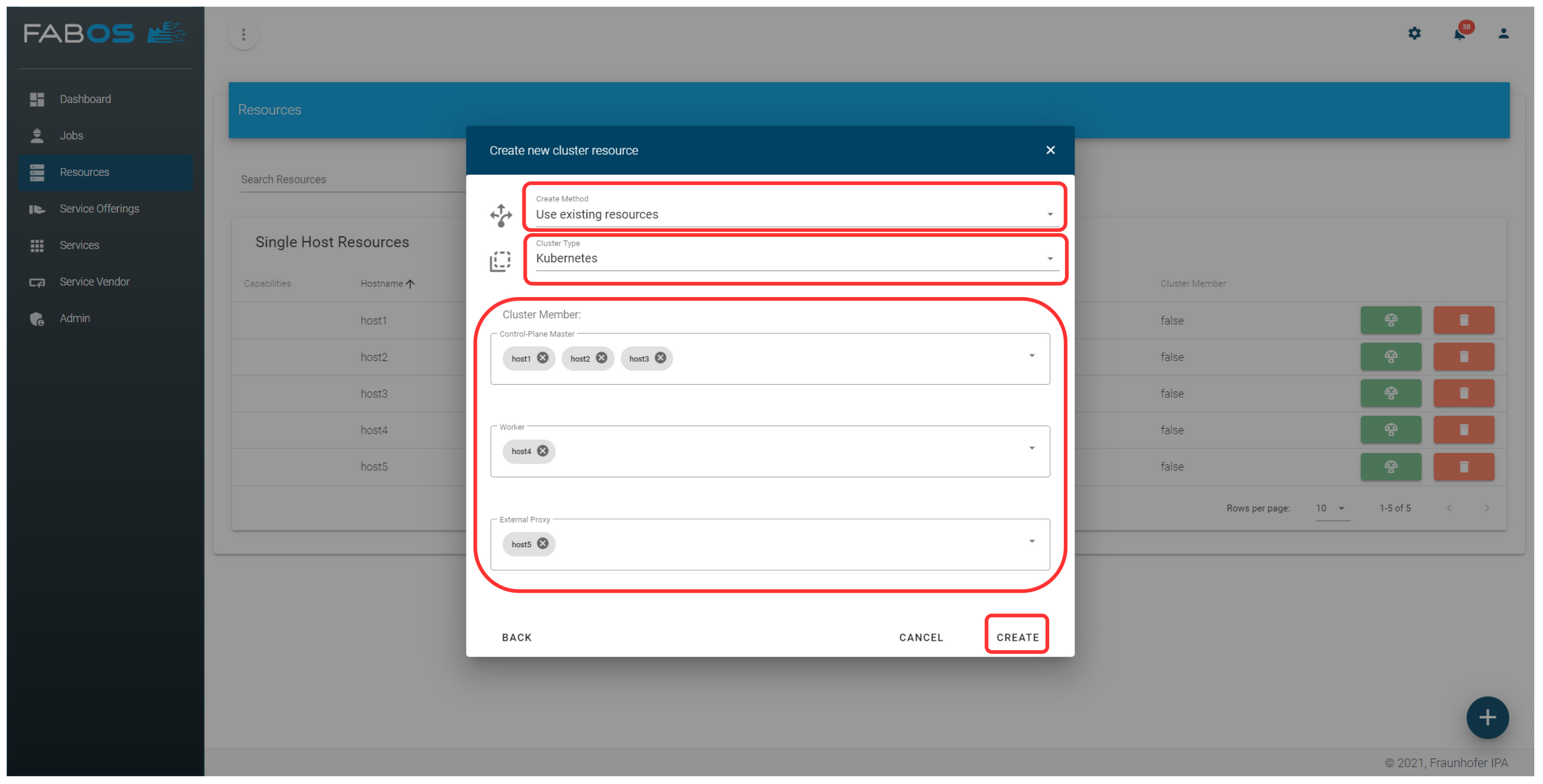

• Configure cluster

  • Select Create Methode Use existing resources.
  • Select Cluster Type Kubernetes.
  • Assign the hosts to the member types.
  • Press CREATE, and the automation to set up your Kubernetes cluster will be triggered. It will take a few minutes.

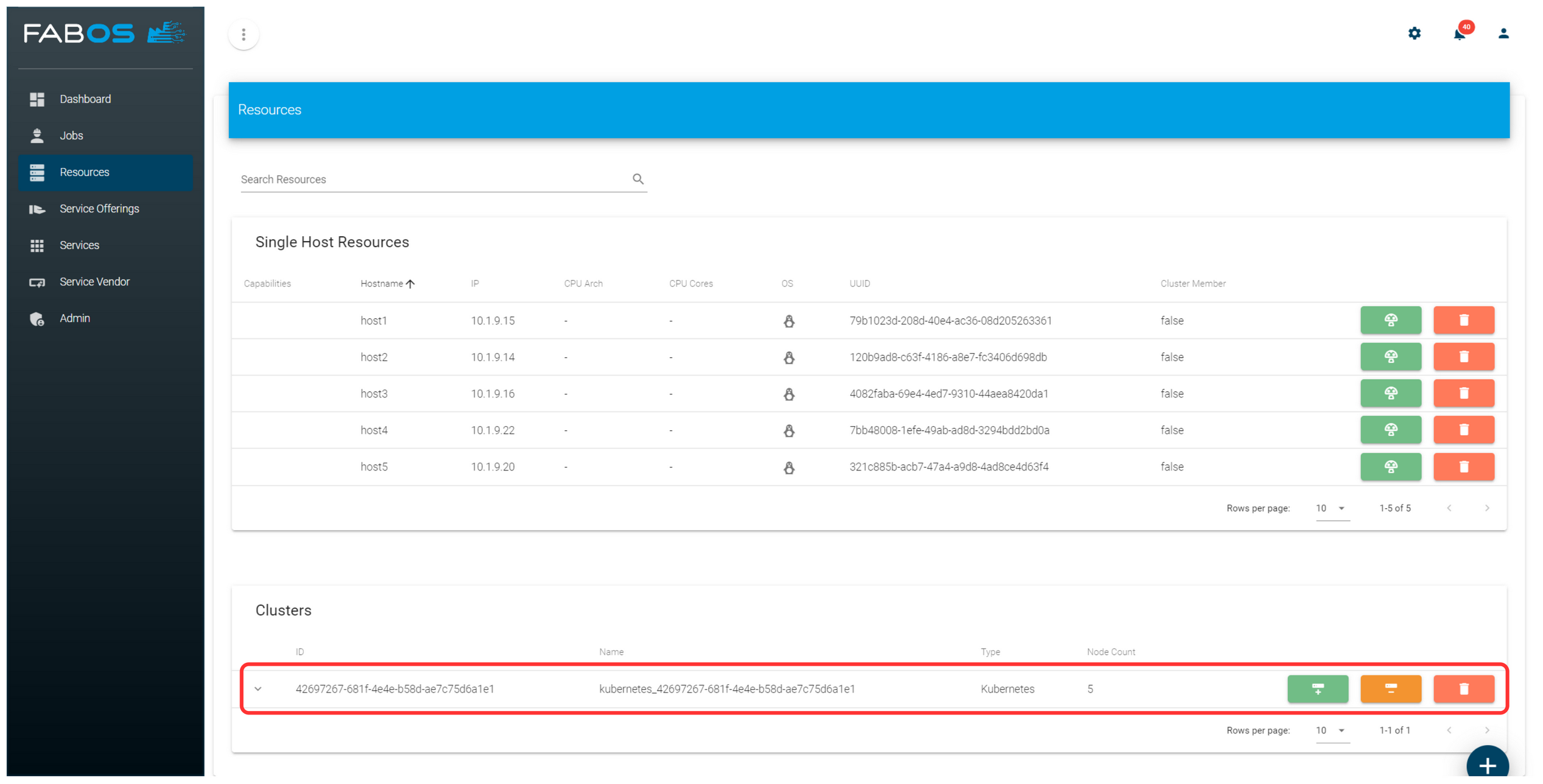

• After the automation has finished, your new Kubernetes cluster will be shown in the Resources overview.

Add managed clusters

Already existing clusters be added as managed clusters. To allow the addition of a managed cluster, a corresponding cluster deployment capability must be available. That deployment capability must have an INSTALL action with the property skipable: true. Configuration parameters in the action, can be used to query information required for accessing the cluster.

Example from the official K8S deployment capability:

{
    ...
    "actions": {
        ...
        "INSTALL": {
            "capabilityActionClass": "AwxCapabilityAction",
            "capabilityActionType": "INSTALL",
            "awxRepo": "https://github.com/eclipse-slm/slm-dc-k8s",
            "awxBranch": "main",
            "playbook": "install.yml",
            "skipable": true,
            "configParameters": [
                {
                "name": "kubeconfig",
                "prettyName": "Kube Config",
                "description": "...",
                "secret": true,
                "valueType": "FILE",
                "requiredType": "SKIP"
                },
                {
                "name": "namespace",
                "prettyName": "Namespace",
                "description": "...",
                "secret": true,
                "valueType": "STRING",
                "requiredType": "SKIP"
                }
            ]
        },
        ...
    },
    ...
}

Kubernetes Clusters

The Service Lifecycle Management provides an official K8S deployment capability, which supports managed clusters. It requires a kubeconfig file and a namespace in the cluster. The Service Lifecycle Management will deploy all services into this namespace.

Example:

• Go to the Resource tab and press the + button in the bottom right corner.

• Select ADD EXISTING.

• Select Cluster.

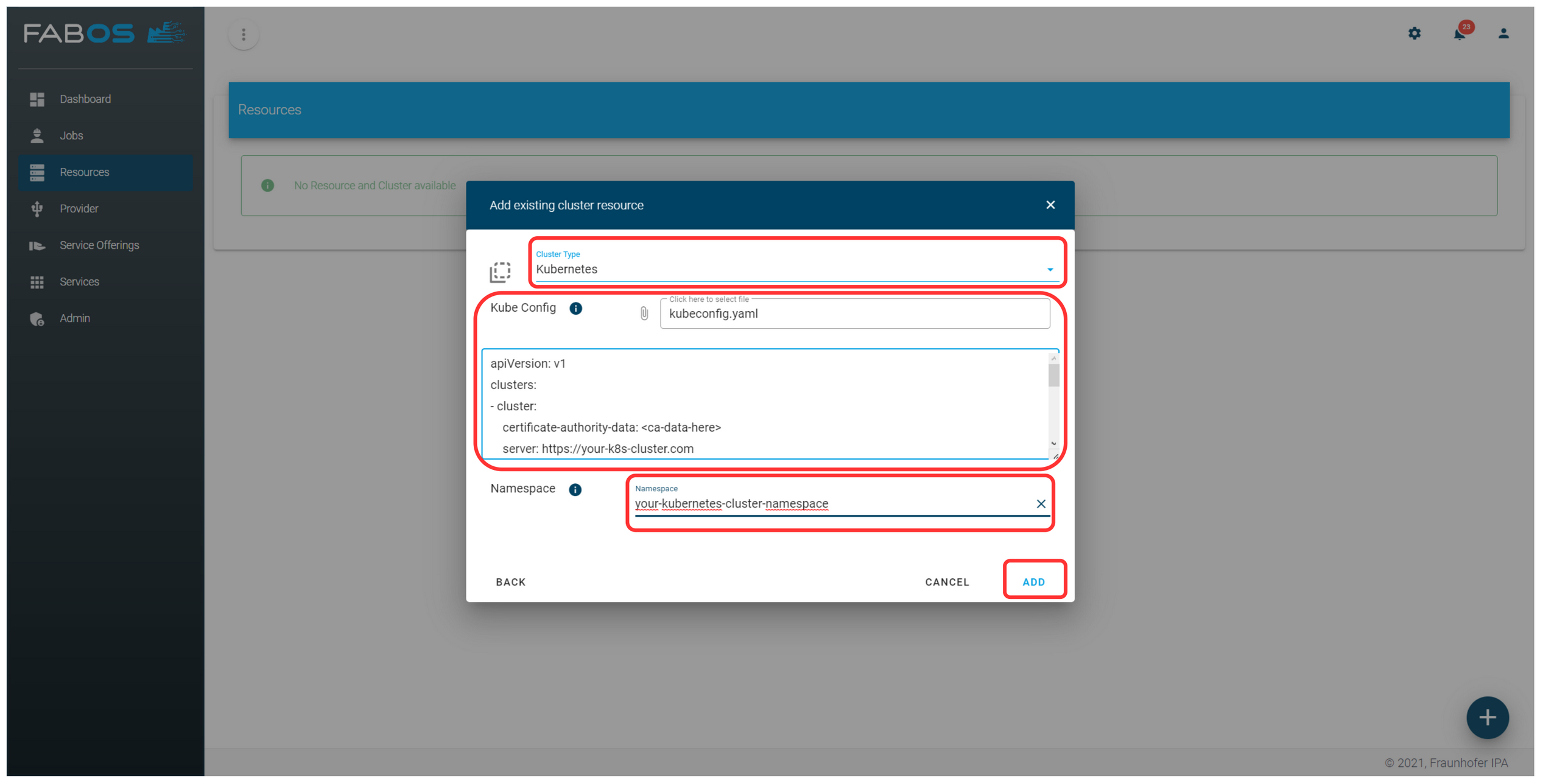

• Add details of cluster

  • Select Cluster Type Kubernetes.
  • Upload or paste the kubeconfig file of the Kubernetes cluster you want to add.
  • Enter the name of the namespace where the Service Lifecycle Management should deploy your services.
  • Press ADD, and your Kubernetes cluster will be added.



• Your Kubernetes cluster will be shown in the Resources overview.
